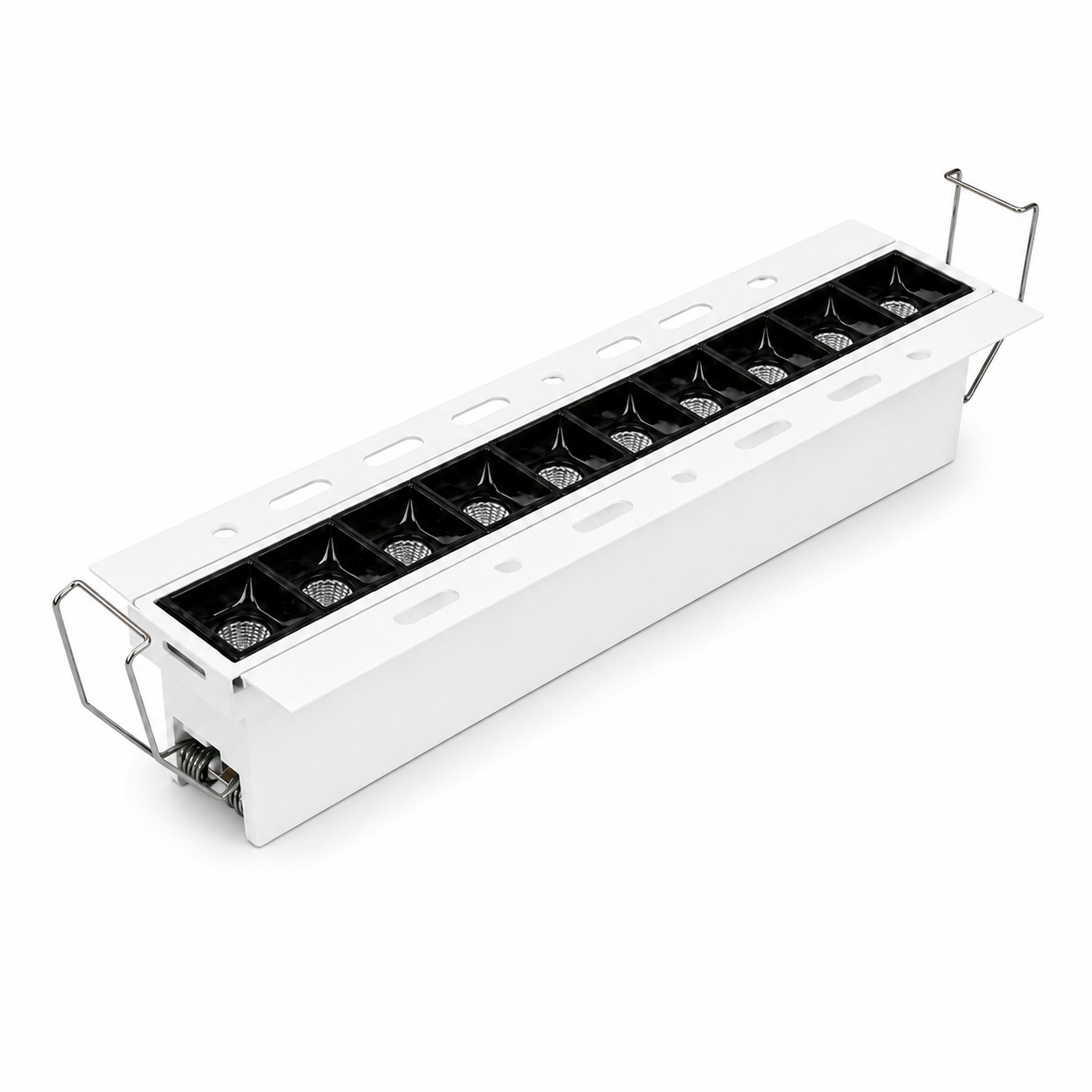

Linear Trimless Downlight iKON-DL04-12W-TL

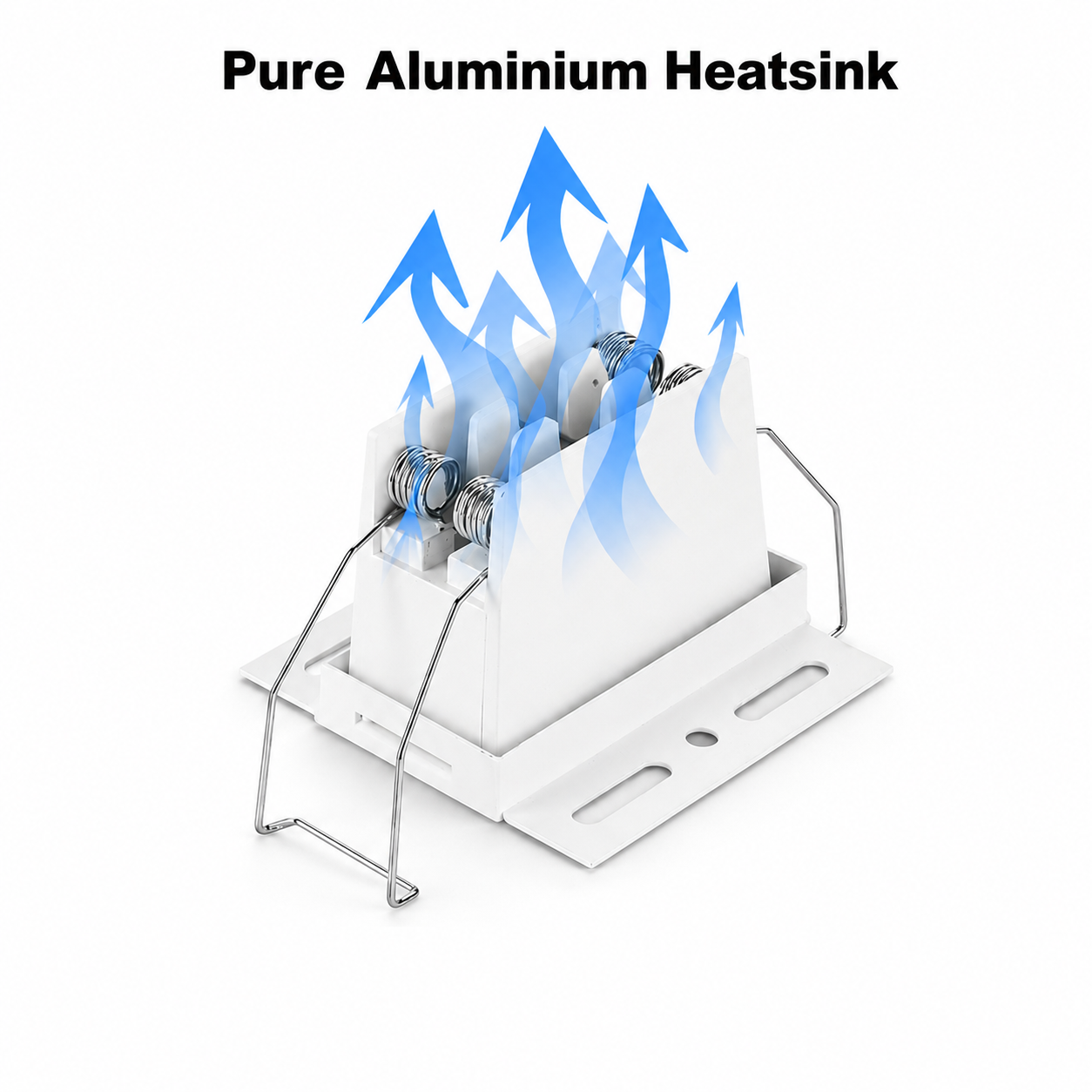

This Linear Trimless Downlight features a high-performance pure aluminum heat sink designed for superior heat dissipation, maintaining a stable operating temperature of 65–70°C. Engineered for seamless, trimless installation, this recessed fixture is designed to be integrated directly into the ceiling structure, providing a perfectly flush and "invisible" architectural finish. The premium construction includes branded OSRAM LED chips, a precision acrylic lens, and specialized anti-glare reflectors that guarantee light decay remains below 21% after 5 years of operation. Unlike traditional fixtures, its clean linear silhouette and trim-free design allow it to blend flawlessly with modern interiors. Equipped with a deep-set reflector system that achieves a UGR of less than 19, it delivers powerful, targeted illumination without dazzling the eyes. Consequently, it is a preferred solution for luxury hotels and high-end residential projects where a minimalist aesthetic and a professional, seamless mounting method.

Model: iKON-DL04-12W-TL

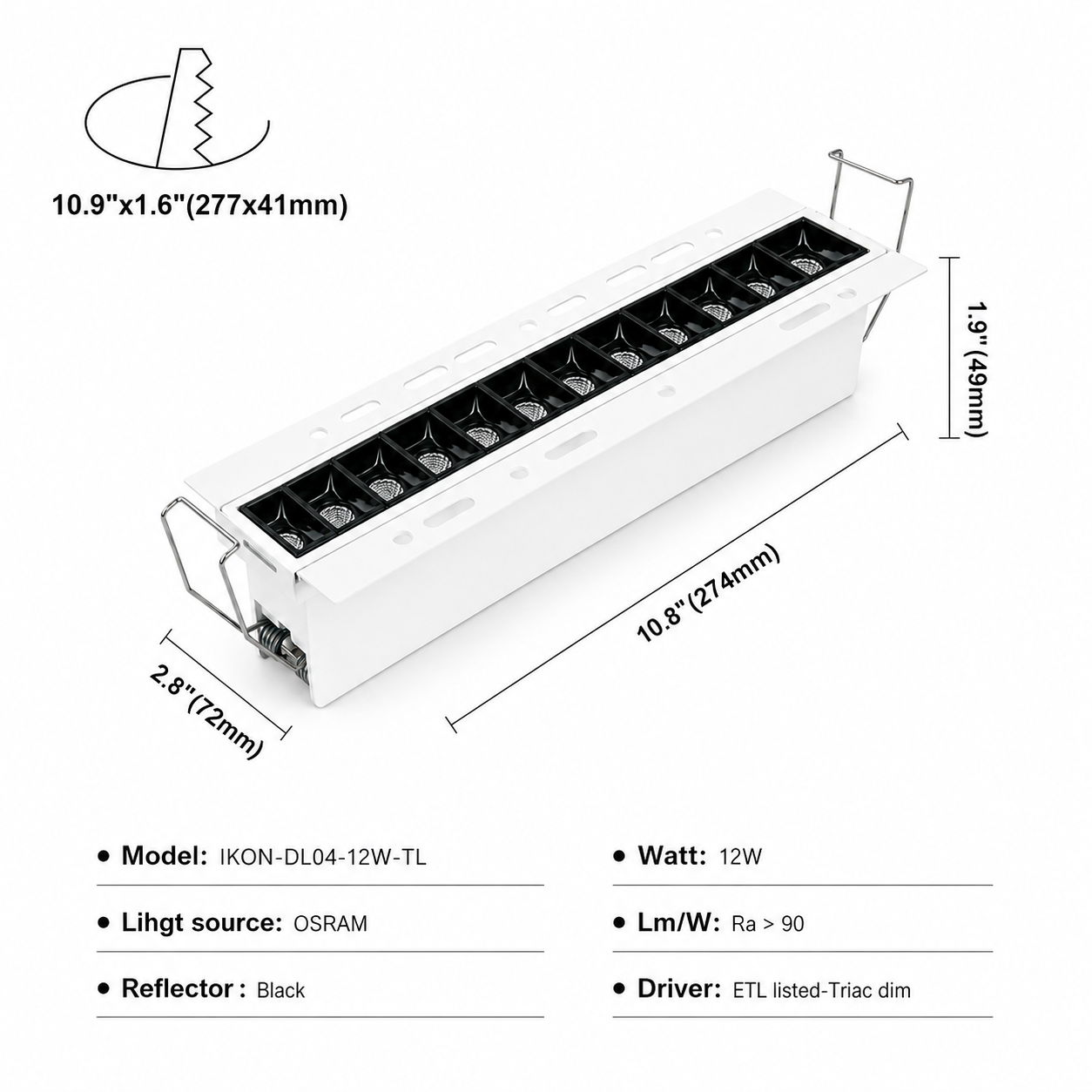

Size: L 10.8" (274mm) x W 2.8" (72mm) x H 1.9" (49mm)
Cut Size: Suitable for 10.9" x 1.6" (277x41mm)
Watt: 12W
Input Voltage: 120-277V
CCT: 3000K
CRI Ra>90
LED Chip: OSRAM
Beam Angle: 30 Degrees
Dimmable at Vin = 120Vac
LED Driver: ETL Listed - Triac Dim
White Housing + Black Reflector
